Inverted Metallurgical Microscope XJP-420

Model Number : XJP-420

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T,

Packaging Details : Wooden Case

Model : XJP-420

Viewing Head : Inclined 30°, interpupillary distance 48-75mm

Nosepiece : Quintuple Nosepiece

Illuminator : 6V/30W Halogen Lamp,Adjustable

Power Supply : AC220V/50Hz;110V/60Hz

Color Filter : Yellow, Blue , Green Color Filter, Ground Glass

Eyepiece : High-point , extra wide field eyepiece EW10×/ 20

Contact Now

Inverted Metallurgical Microscope XJP-420

Features:

XJP-420 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.

Product Name	Inverted Metallurgical Microscope XJP-420
Eyepiece	High-point , extra wide field eyepiece EW10×/ 20
Objectives	Inifitive Plan achromatic objective 4X/0.1 Inifitive Plan achromatic objective10X/0.25 Inifitive Plan achromatic objective20X/0.4(s) Inifitive Plan achromatic objective 40X/0.6
Viewing Head	Inclined 30°, interpupillary distance 48-75mm
Focusing	Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation
Mechanical Stage	Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm Moving range 120X78mm,loading plate 128X86mm
Nosepiece	Quintuple Nosepiece
Illuminator	6V/30W Halogen Lamp,Adjustable
Color Filter	Yellow, Blue , Green Color Filter, Ground Glass
Power Supply	AC220V/50Hz;110V/60Hz

Optional Accessories:

Product Name	Product Name
Infinite Plan Achormatic 5x/0.25	Infinite Plan Achormatic 80x/0.9
Infinite Plan Achormatic 100X/0.80	Mechanical 226x178mm
1xC-mount(Available for Digital Camera)	USB Camera USB-A1

Inverted Metallurgical Microscope XJP-420

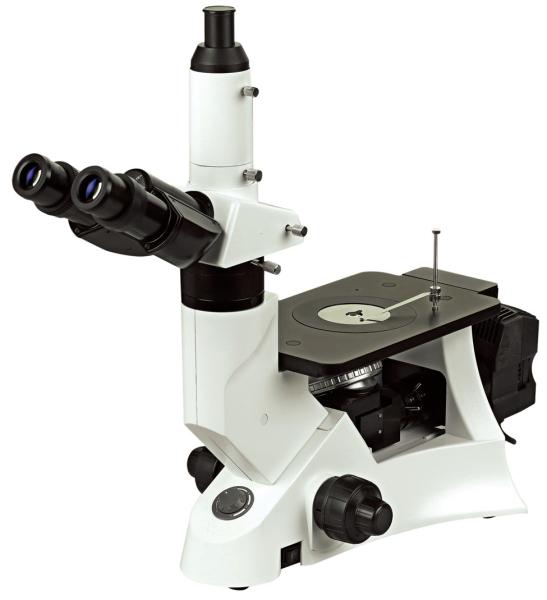

Inverted Metallurgical Microscope XJP-420 Images
